EUHT Rural Broadband Coverage Products

EUHT Rural Broadband Coverage Products

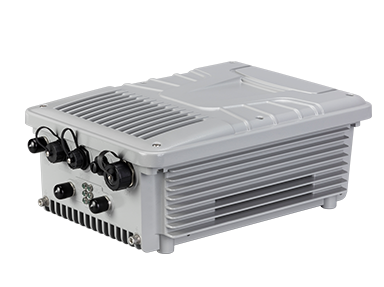

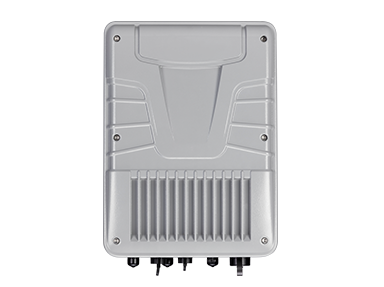

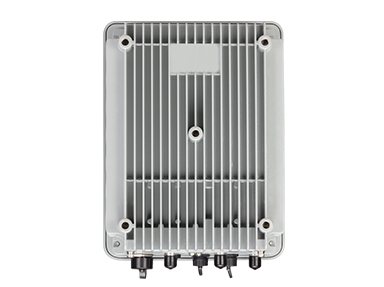

Rural central access equipment NPEC02C#17

Size

360mm×265mm×145mm

Weight

7.5kg

Protection level

IP65

Power supply

-48V/DC or 220V/AC

Power consumption

24W

Data interface

Gigabit wire, optical fiber

Working frequency band

600-800MHz

Working bandwidth

20/40/80MHz configurable

Transmitting power

Maximum 26dBm, configurable

Antenna

2X2MIMO

Transmission bandwidth

≥100Mbps

Maximum activation support users

256

Maximum concurrent support users

200

Typical application scene

Rural wide coverage and last kilometer wireless broadband

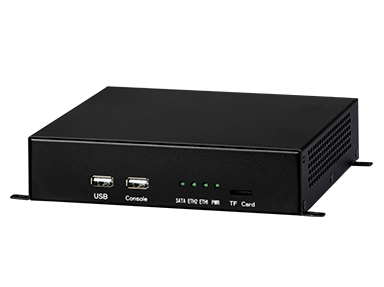

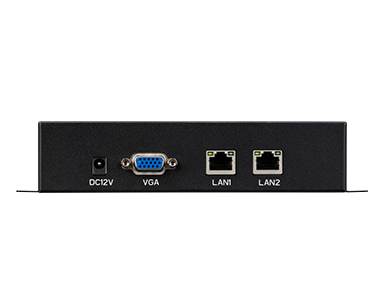

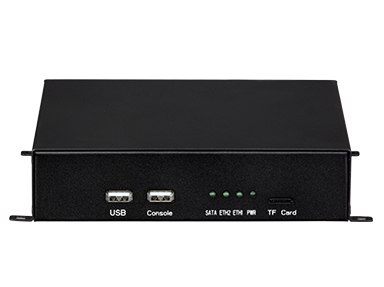

Industrial Interconnection terminal NPIPC01C#16

Size

189mm×150mm×39mm

Weight

< 2kg

Protection level

IP30

CPUNS115 Dual A9
Memory

1GB DDR3

EMMC8GB EMMC5.0
OS

Linux

Interface

10/100Mbps network port (standard)

10/100Mbps network port (optional)

USB serial port (optional)

USB2.0 (standard)

VGA interface (optional)

TF card slot (standard)

SATA hard disk interface (standard)

Indicator

Power

Network

Hard disk

Operating temperature

0℃-40℃

Operating humidity

10%-90% no condensation

Power supply

12V/3A adapter

Lightning protection: common mode±2KV, differential mode±1kV

Typical application scene

Intelligent industry, video surveillance, rural area wide coverage

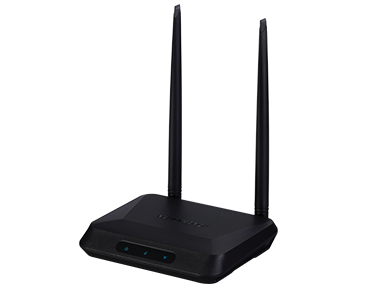

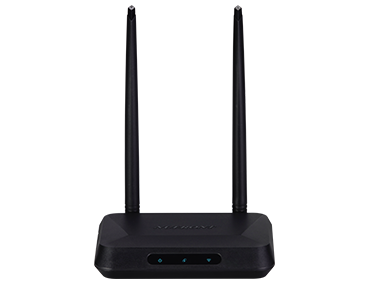

Rural terminal access equipment NPEW03C#4

Size

150mm×120mm×30mm

Weight

195g

Power supply

9V/2A

Power consumption

3W

Working frequency band

600-800MHz configurable

Working bandwidth

20/40MHz configurable

Transmitting power

Maximum 26dBm, configurable

Antenna

Rod antenna

WiFi

Working frequency 2.4GHz configurable, built-in antenna

Typical application scene

Rural wide coverage and last kilometer wireless broadband

EUHT Rural Broadband Coverage Products Solutions
