EUHT Smart Metro Products

EUHT Smart Metro Products

Metro base station EBU NPEC01S-01#15

Size

439mm×304mm×110mm (without handle)

Weight

<10kg

Protection level

IP65

Power supply

-48V/DC or 220V/AC

Power consumption

< 50W

Data interface

Gigabit optical fiber, up to 2 network ports

Working frequency band

5150MHz~5180MHz configurable

Working bandwidth

20/40/80MHz configurable

Transmitting power

Maximum 22dBm, configurable

Antenna

2x2 MIMO

Speed adaptability

200km/h

Transmission reliability

≥99.99%

Typical application scene

Subway, light rail vehicle-to-ground communication

Metro access unit EAU NPES01S-01#14

Size

333mm×246mm×44mm (without handle)

Weight

<8kg

Power supply

110V /DC

Power consumption

<50W

Data interface

M12 Ethernet, up to 2 network ports

Working frequency band

5150MHz~5180MHz configurable

Working bandwidth

20/40/80MHz configurable

Antenna

2X2MIMO

Typical application scene

Subway, light rail vehicle-to-ground communication

Metro base station EBU NPEC01S-02#13

Size

439mm×304mm×150mm(without handle)

Weight

<15kg

Protection level

IP65

Power supply

-48V/DC or 220V/AC

Power consumption

<60W

Data interface

Gigabit optical fiber, up to 2 network ports

Working frequency band

5150MHz~5180MHz configurable

Working bandwidth

20/40/80MHz configurable

Transmitting power

Maximum 22dBm, configurable

Antenna

4X4MIMO

Speed adaptability

200km/h

Transmission reliability

≥99.99%

Typical application scene

Subway, light rail vehicle-to-ground communication

Metro access unit EAU NPES01S-02#12

Size

400mm×300mm×44mm

Weight

<8kg

Power supply

110V/DC

Power consumption

<60W

Data interface

M12 Ethernet, up to 2 network ports

Working frequency band

5150MHz~5180MHz configurable

Working bandwidth

20/40/80MHz configurable

Antenna

4X4MIMO

Typical application scene

Subway, light rail vehicle-to-ground communication

Rail traffic synchronization unit ETU NPET01S-01#11

Size

374mm×242mm×98mm(without handle)

Weight

<5Kg

Protection level

IP65

Power supply

-48V/DC or 220V/AC

Power consumption

<30W

Operating humidity and altitude

-40℃~+75℃, below 3000m

Synchronous interface

Optical fiber single core output

Typical application scene

Subway, light rail vehicle-to-ground communication

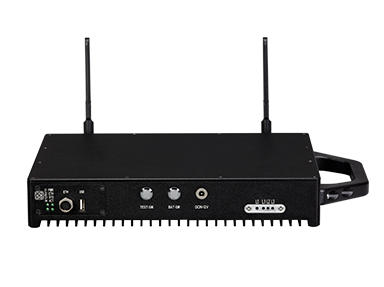

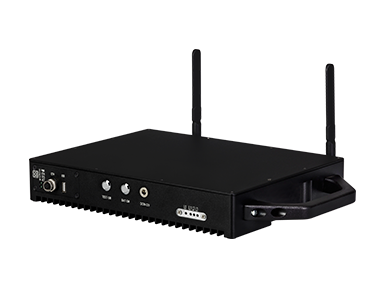

EUHT tester for base unit NPE2MTB-01#3

Size

312mm×232mm×53mm(without handle)

Weight

<5Kg

Protection level

IP30

Power supply

12.6V DC

Power consumption

≤40W

Storage temperature

-20°~ +60°

Operating humidity

20%~ 90%

Operating air pressure

70~ 106Kpa

Typical application scene

Subway, light rail vehicle-to-ground communication

EUHT Smart Metro Products Solutions
