EUHT Intelligent High Speed Rail Products

EUHT Intelligent High Speed Rail Products

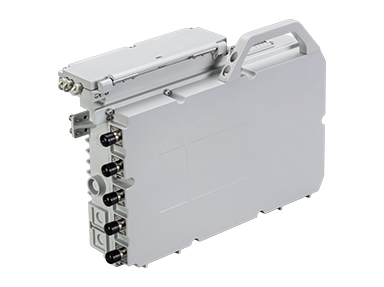

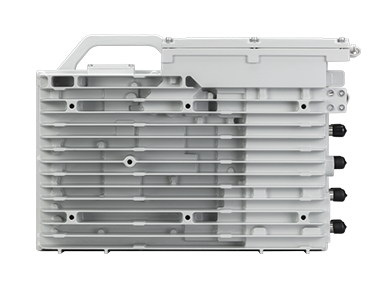

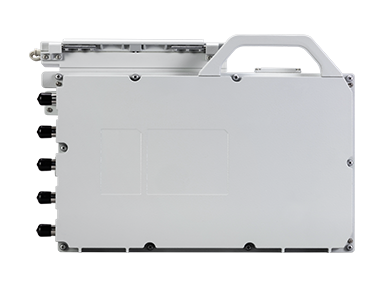

High Speed Rail base station EBU NPEC01H-01#2

Size

439mm×304mm×110mm (without handle)

Weight

10kg

Protection level

IP65

Power supply

-48V/DC or 220V/AC

Power consumption

< 50W

Data interface

Gigabit optical fiber, up to 2 network ports

Working frequency band

5150MHz~5850MGHz configurable

Working bandwidth

20/40/80MHz configurable

Transmitting power

Maximum 22dBm, configurable

Antenna

2X2MIMO

Speed adaptability

500km/h

Transmission reliability

≥99.99%

Typical application scene

High speed train-to-ground communication

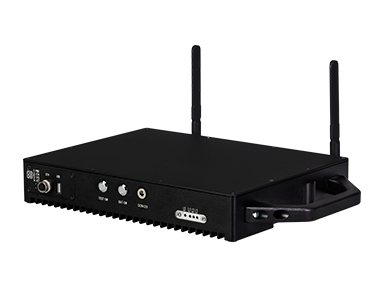

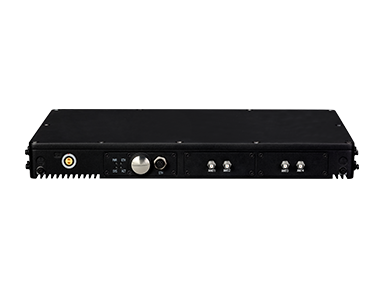

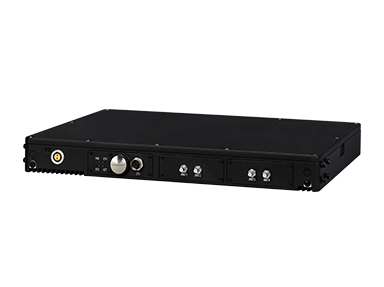

High Speed Rail vehicle terminal EAU NPES01H-01#8

Size

400mm×300mm×44mm

Weight

<8kg

Power supply

110V/DC

Power consumption

<50W

Data interface

M12 Ethernet, up to 2 network ports

Working frequency band

5150MHz~5850MGHz configurable

Working bandwidth

20/40/80MHz configurable

Antenna

2X2MIMO

Typical application scene

High speed train-to-ground communication

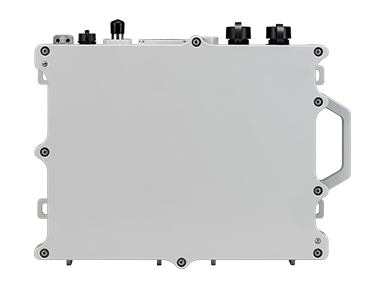

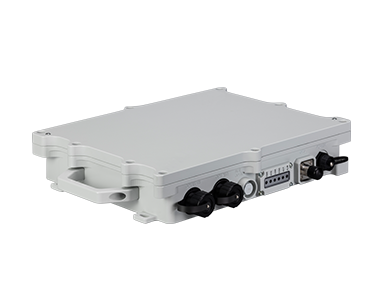

Rail Traffic Synchronization Unit ETU NPET01S-01#9

Size

374mm×242mm×98mm(without handle)

Weight

<5kg

Protection level

IP65

Power supply

-48V/DC or 220V/AC

Power consumption

<30W

Operating temperature and altitude

-40℃~+75℃, below 3000m

Synchronous interface

Fiber single core output

Typical application scene

Subway, light rail vehicle-to-ground communication

EUHT tester for base unit NPE2MTB-01#10

Size

312mm×232mm×53mm(without handle)

Weight

<5kg

Protection level

IP30

Power supply

12.6V/DC

Power consumption

≤40W

Storage temperature

-20°~ +60°

Operating humidity

20%~ 90%

Operating air pressure

70~ 106Kpa

Typical application scene

Subway, light rail vehicle-to-ground

EUHT Intelligent High Speed Rail Products Solutions
